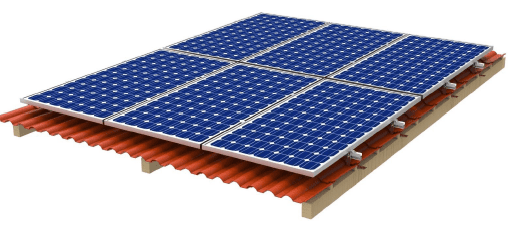

Tile Roof Structure

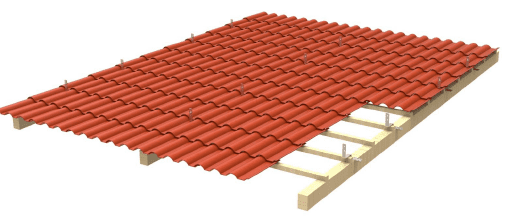

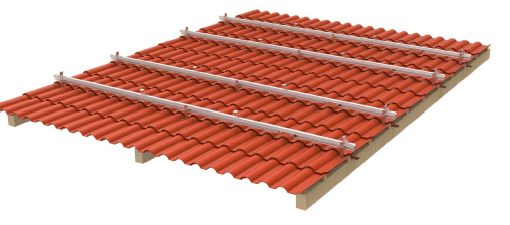

The roof hook mounting system allows fixation of a rail system above the roof tiles to the sub structure below the tiles.
This ensures a secure fixation system and minimises the impact on the roof tiles. The roof hooks are optimised for the standard South African batten size as well as the more popular roman tiles in South Africa.

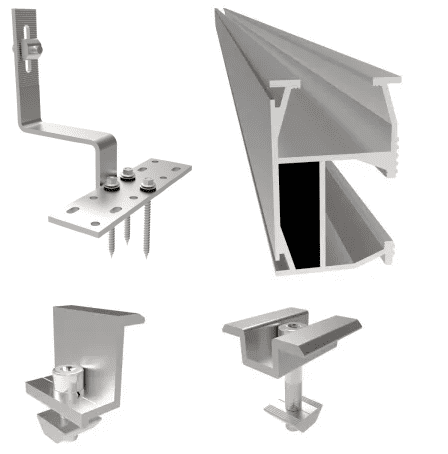

Rails are aluminium 6063-T6, all brackets and module clamps are anodised aluminium 6005-T5, roof hook and bolts are stainless steel SUS304. Wood screws are of a coated steel composition, although a stainless-steel screw is also acceptable.
